Bolt Graphics has announced its completed tape-out of a test chip for its Zeus GPU, marking the California-based startup’s first move from FPGA emulation to manufactured silicon — which it claims can deliver 17 times lower cost of compute.
Go deeper with TH Premium: CPU
(Image credit: Tom’s Hardware)
This is a concrete step for a company whose ambitious performance claims have, until now, rested entirely on internal simulations and FPGA testing. When Bolt first introduced Zeus in early 2025, it said the GPU could deliver up to 10 times the path tracing throughput of Nvidia’s GeForce RTX 5090. Those figures obviously drew attention as well as skepticism, given the absence of working silicon. In a set of FAQs released alongside the announcement, Bolt says that its architecture has been running on FPGA and under evaluation by customers for four years.
TSMC’s 12nm FFC node is part of the company’s mature 16nm/12nm FinFET family, offering lower cost and well-established IP libraries compared to leading-edge processes. According to Bolt, however, the Zeus architecture is also designed for “advanced nodes, including 5nm,” suggesting the 12nm test chip is more of a validation step and that the company will look to use more advanced nodes for final production.

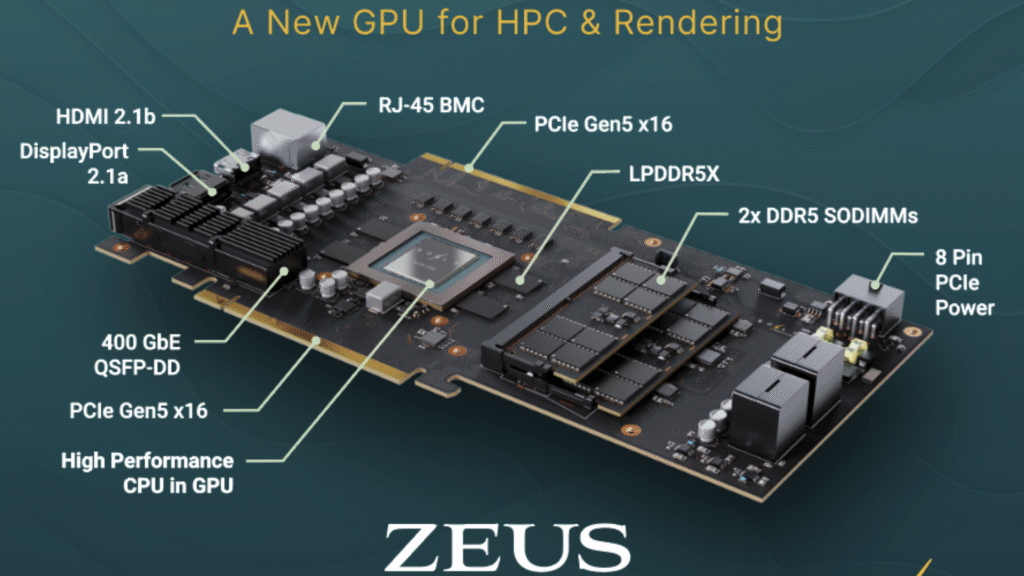

According to Bolt’s product specs, Zeus will ship in PCIe card and 2U server form factors. The PCIe cards range from a single-slot, 120 W model with 5/10/20 TFLOPS at FP64/FP32/FP16, up to a dual-slot, 250 W card offering twice those figures. All cards feature 128 MB to 256 MB of on-chip cache, up to 384 GB of memory through a combination of soldered LPDDR5X and DDR5 SO-DIMMs, and integrated 400 GbE networking.
Swipe to scroll horizontallyPCIe cardsRow 0 – Cell 0
Bolt Zeus 1c26-032
Bolt Zeus 2c26-064
Bolt Zeus 2×26-128
Form factor
Single-slot PCIe
Dual-slot PCIe
Dual-slot PCIe
Board power
120 W
250 W
250 W
FP64/FP32/FP16 vector TFLOPS
5/10/20
10/20/40
10/20/40
INT16/INT8 matrix TFLOPS
307.2/614.4
614.4/1,228.8
614.4/1,228.8
On-chip cache
128 MB
256 MB
256 MB
Memory
Up to 160 GB, 32 GB LPDDR5X, 2x DDR5 SO-DIMMs
Up to 320 GB, 64 GB LPDDR5X, 4x DDR5 SO-DIMMs
Up to 384 GB, 128 GB LPDDR5X, 4x DDR5 SO-DIMMs
Bolt’s stated product pipeline exceeds $500 million, and the company says over 14,000 enterprises, developers, and end users have joined its early access program. It closed a Series A that was reportedly 50% oversubscribed, though neither the funding amount nor lead investors have been disclosed.
Timelines have shifted somewhat since Bolt first appeared on the scene, with the company originally aiming for developer kits in late 2025 and production in late 2026. At CES in January, the company demoed a prototype card but still lacked functional silicon. This new announcement pins production to Q4 2027 to supply chains for HPC, rendering, and next-gen workloads, with no updated timeline for developer hardware.
